WFL MILLTURN M60 x 4500 YEAR OF MAKE 2005

THIS MACHINE IS THE PROPERTY OF MONTRASIO GMBH

NO ONE IS AUTHORIZED TO MISUSE OR REPURPOSE THIS DATA

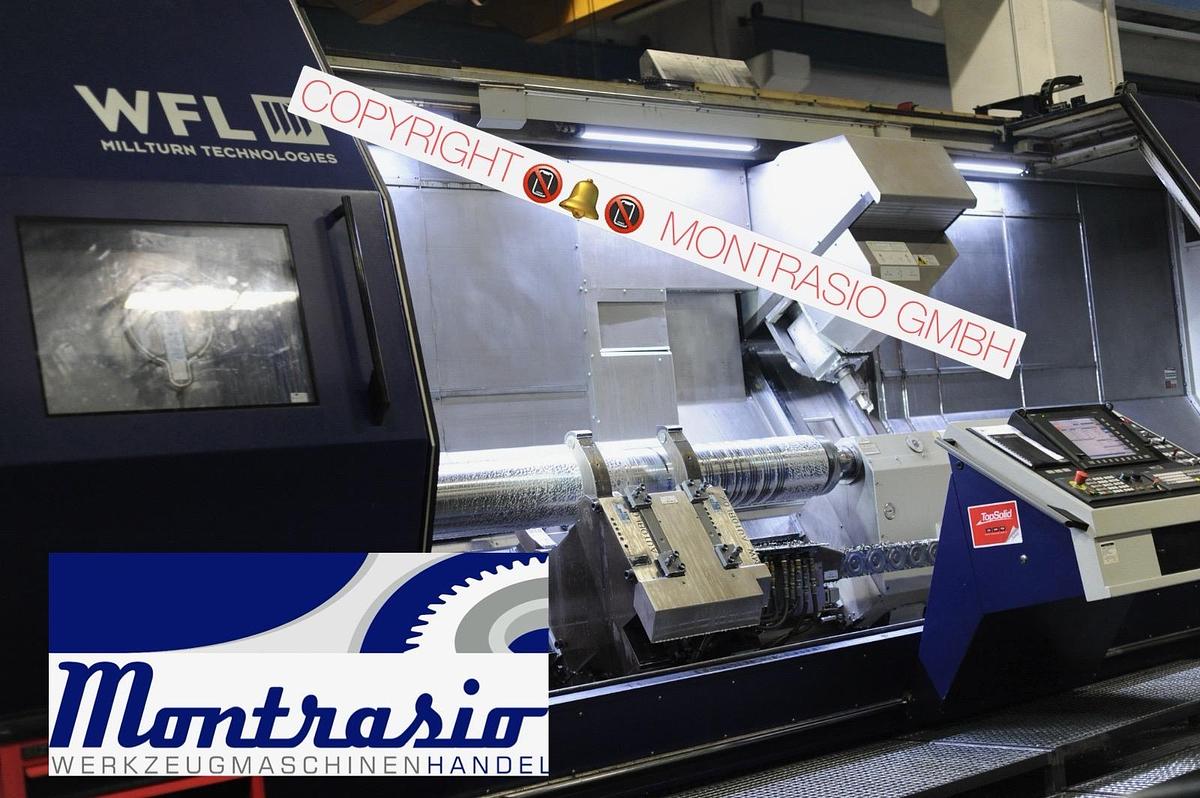

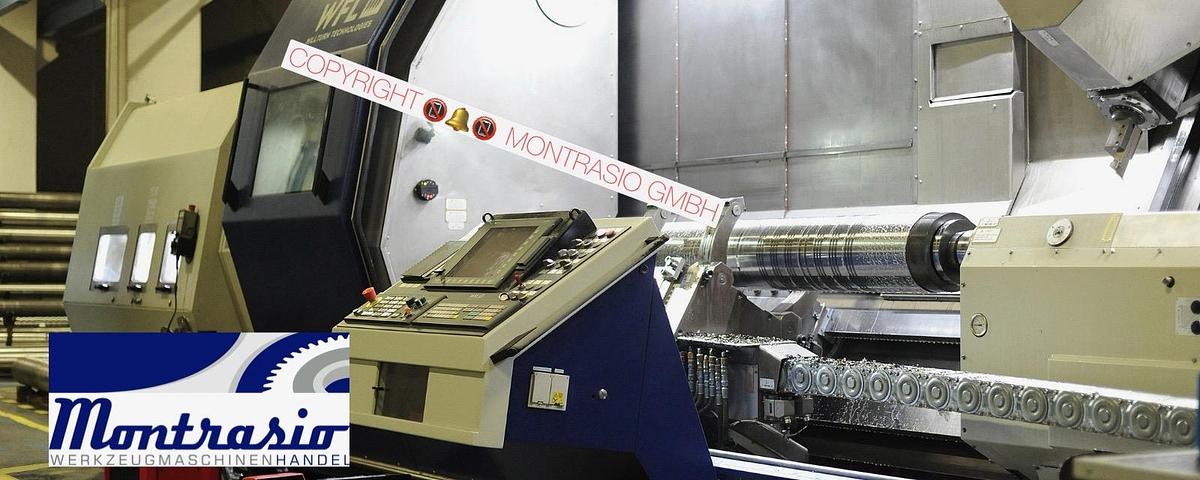

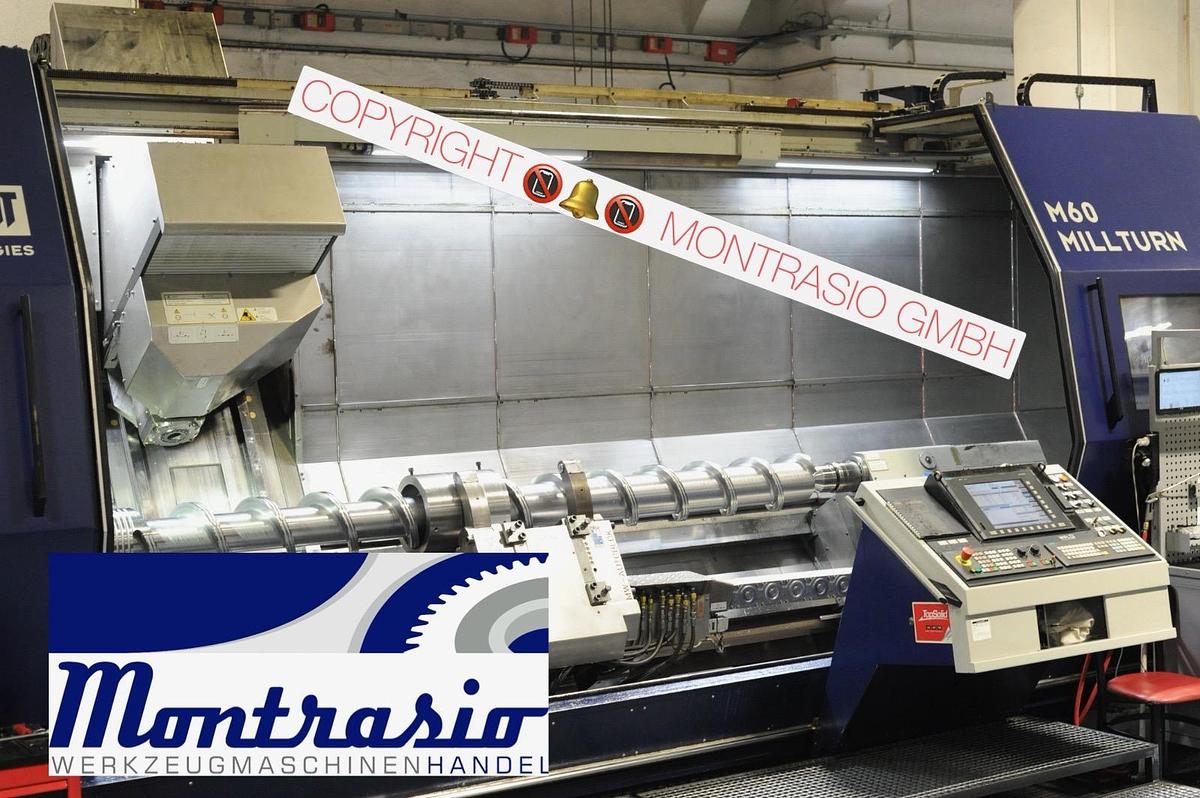

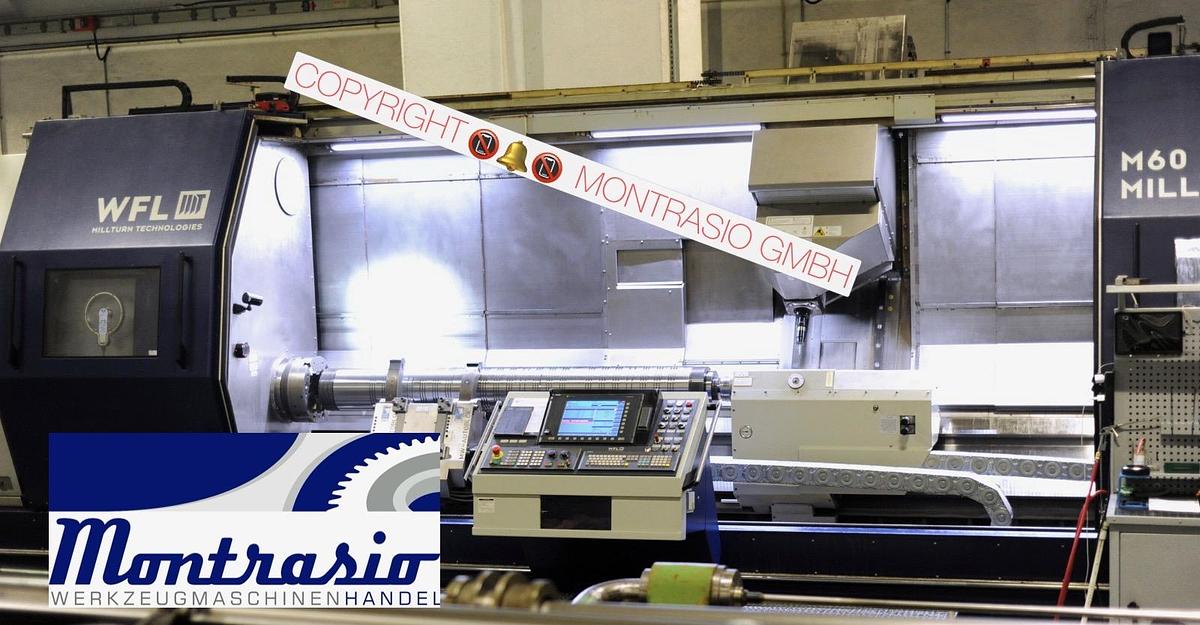

WFL M60 x 4500 Turning Milling and Boring Center 5 axes

Manufacturer WFL MILLTURN

Model M60 x 4500

Location Europe

Year of manufacture 2005

Turning length 4500 mm

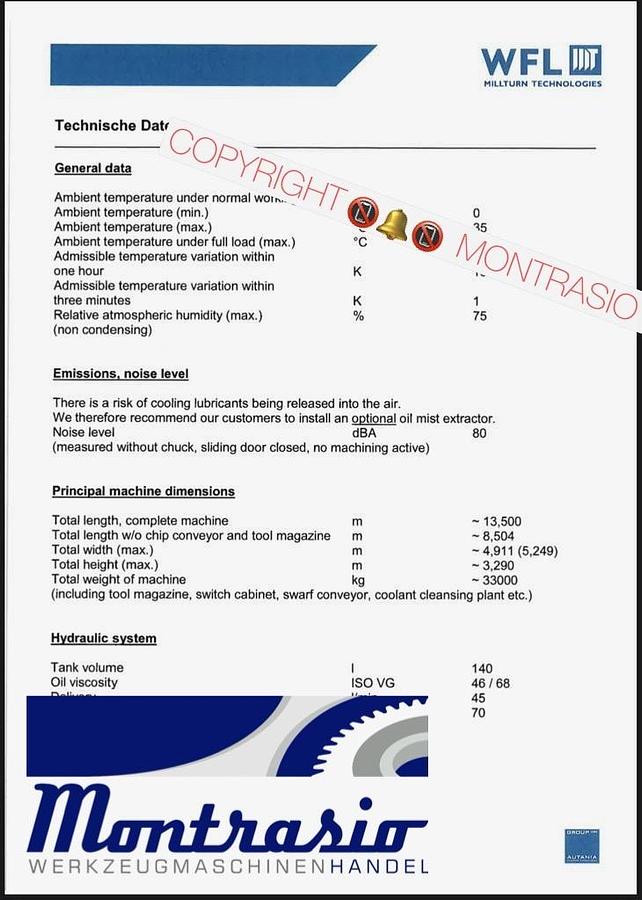

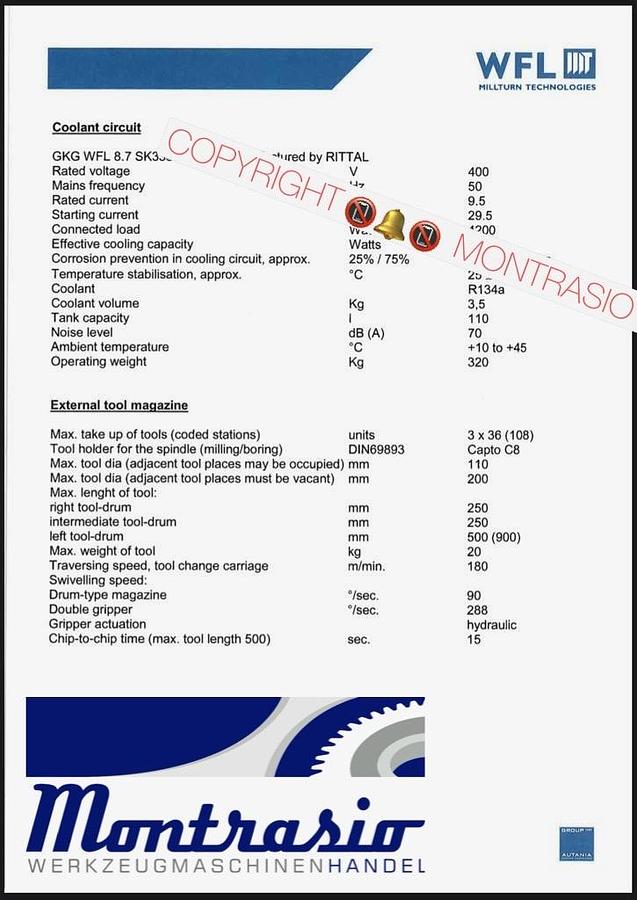

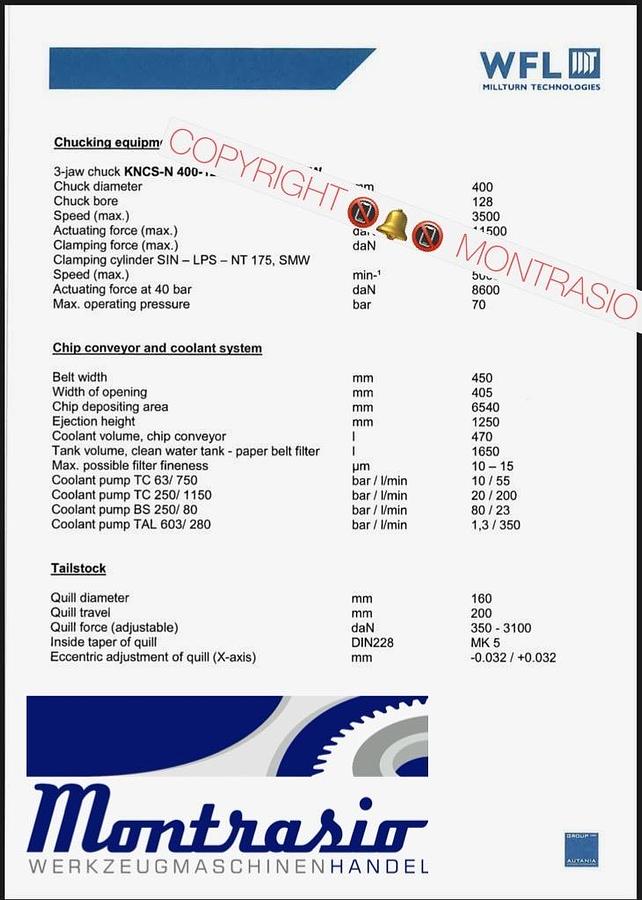

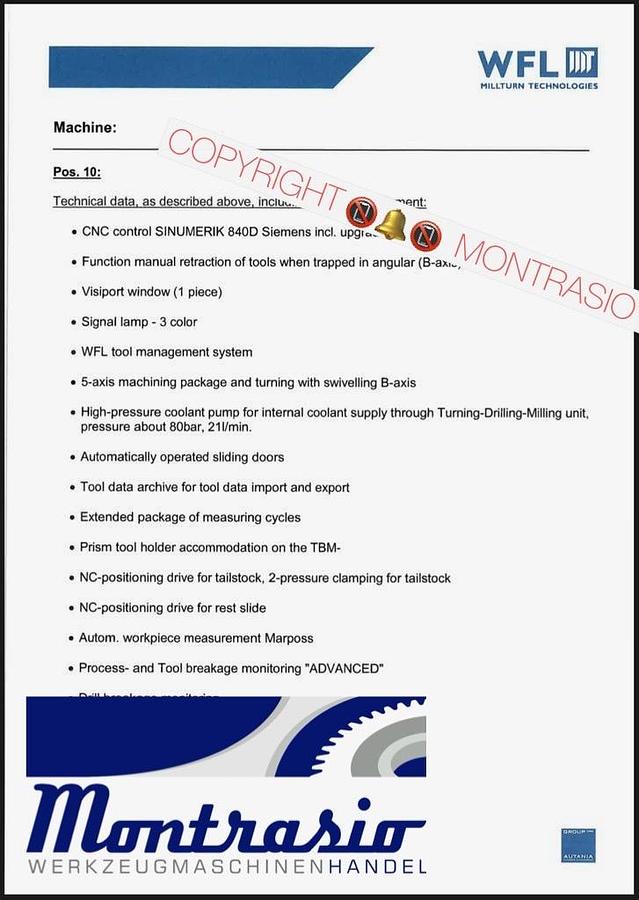

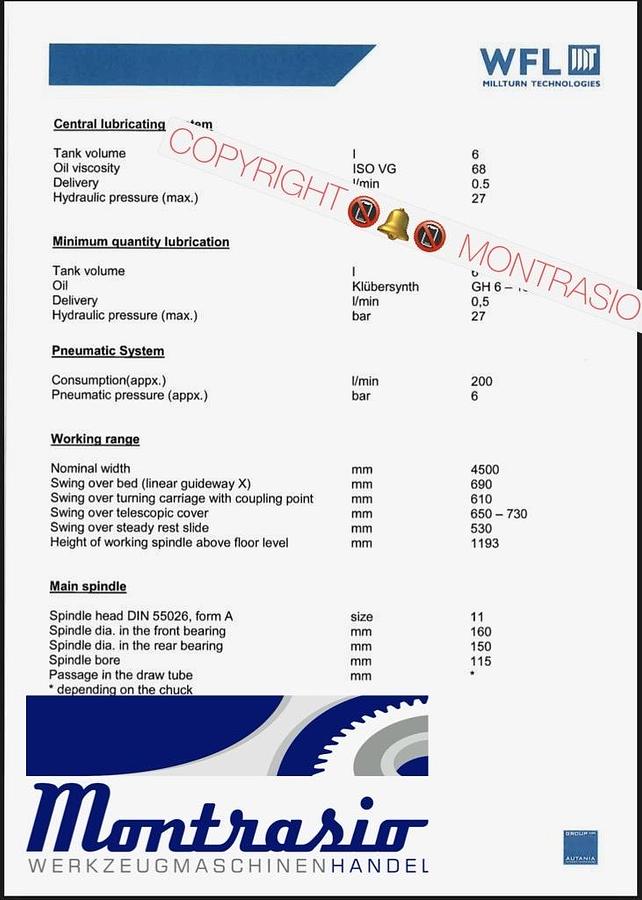

All technical details of the machine can be found in the attached technical documentation and photos The following is a summary of the most important specifications

Lubrication and coolant systems

Central lubrication system

Tank capacity 6 l

Oil type ISO VG 68

Delivery rate 0 5 l min

Max pressure 27 bar

Minimum quantity lubrication MMS MQL

Tank capacity 6 l

Oil type Klübersynth GH 6 100

Delivery rate 0 5 l min

Max pressure 27 bar

Pneumatic system

Air consumption approx 200 l min

Operating pressure 6 bar

Working area

Nominal turning length 4500 mm

Swing over bed linear guideway X axis 690 mm

Swing over slide 610 mm

Swing over telescopic covers 650 730 mm

Swing over steady rest 530 mm

Spindle center height from floor 1193 mm

Main spindle

Spindle nose DIN 55026 Form A size 11

Front bearing 160 mm

Rear bearing 150 mm

Spindle bore 115 mm

Drawtube passage depending on the chuck configuration used

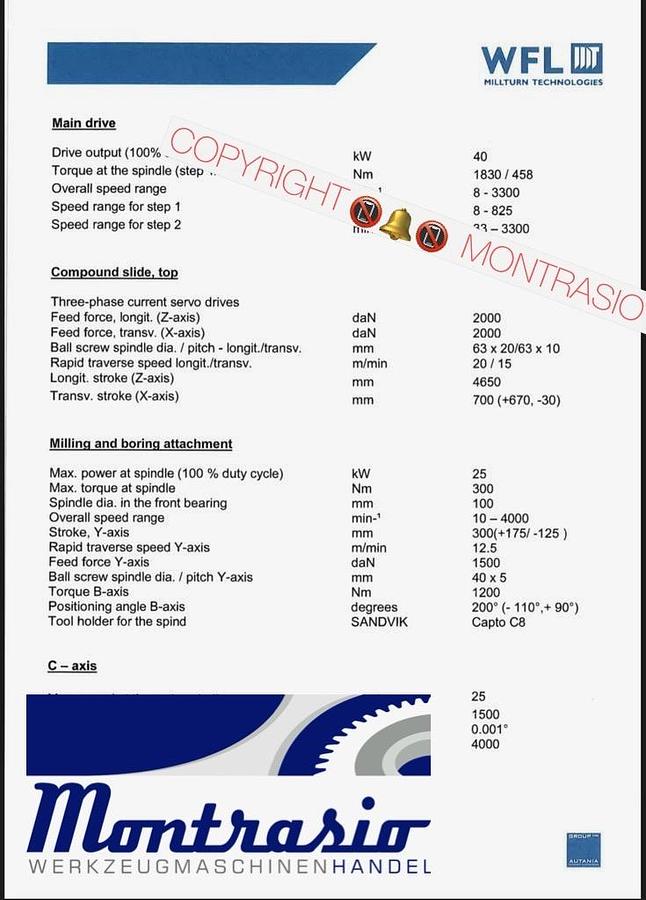

Main drive

Motor power 100 percent duty 40 kW

Spindle torque gear 1 2 1830 458 Nm

Total speed range 8 3300 min minus 1

Gear 1 8 825 min minus 1

Gear 2 33 3300 min minus 1

Upper slide X Z

Feed force Z X 2000 daN

Ball screws Z X 63 x 20 63 x 10 mm

Rapid traverse Z X 20 15 m min

Z axis travel 4650 mm

X axis travel 700 mm plus 670 minus 30

Milling and drilling unit

Max spindle power 25 kW

Max spindle torque 300 Nm

Front spindle diameter 100 mm

Speed range 10 4000 min minus 1

Y axis travel 300 mm plus 175 minus 125

Rapid traverse Y axis 12 5 m min

Feed force Y axis 1500 daN

Ball screw Y 40 x 5 mm

B axis torque 1200 Nm

B axis swivel range 200 degrees minus 110 plus 90

Tool interface SANDVIK Capto C8

C axis

Max speed 25 min minus 1

Max torque 1500 Nm

Minimum programmable step 0 001 degrees

Clamping torque disc brake 4000 Nm

This offer is non binding and subject to prior sale We are available for any questions a more detailed equipment specification or to coordinate further details such as clamping devices tooling package commissioning and training
