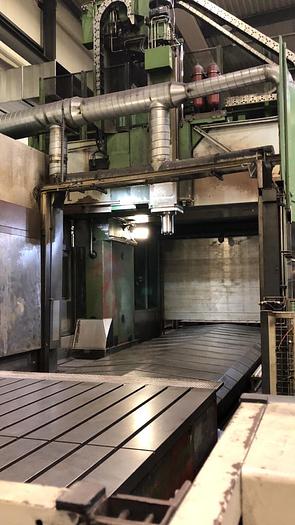

Portalfräsmaschine INNSE BERARDI ATLAS 2P

Baujahr 2002

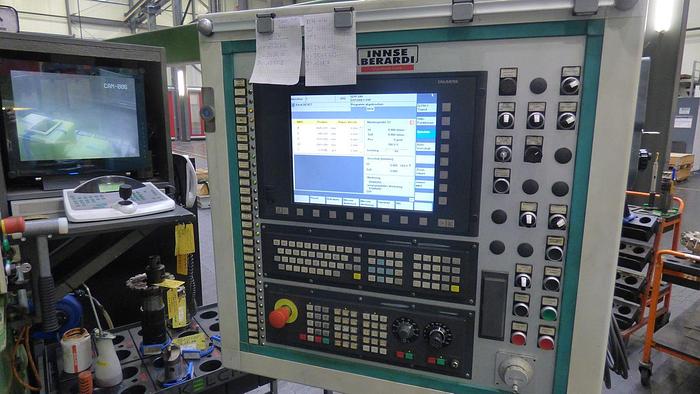

Steuerung SIEMENS SINUMERIK 840 D

x-Axis 9000 mm (1st Table 5000 mm + 2nd Table 4000 mm)

y-axis 4000 mm

z-axis 1500 mm

Table 1: 3000x4000 mm (weight 25000 kg)

Table 2: 3000x3000 mm (weight 20000 kg)

Tables put together 3000x8000 mm

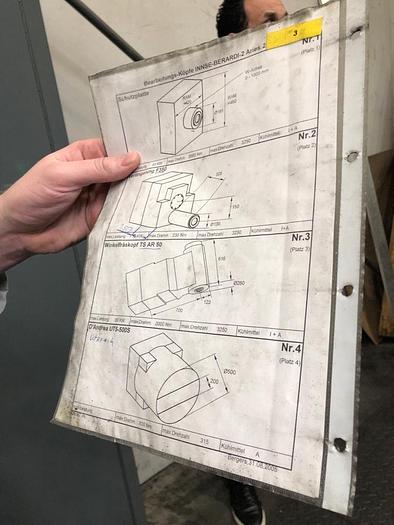

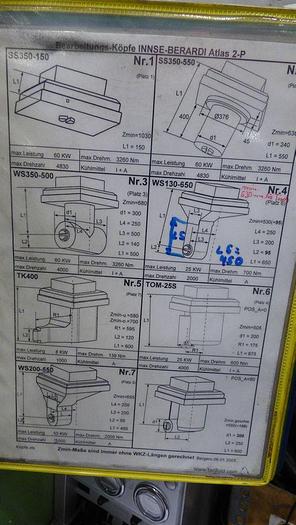

7 pcs. of milling heads: horizontal, vertical and universal

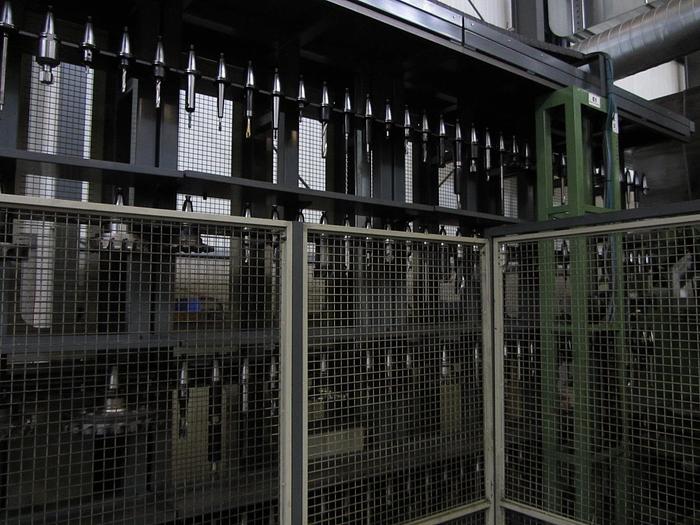

Werkzeugwechsler 160 Positionen

spindle motor kw 60

spindle torque Nm 3272

spindle speed 5 - 4833 rpm

2 x Chip conveyor
