MANDELLI STORM 940 (2000)

MANDELLI STORM 940

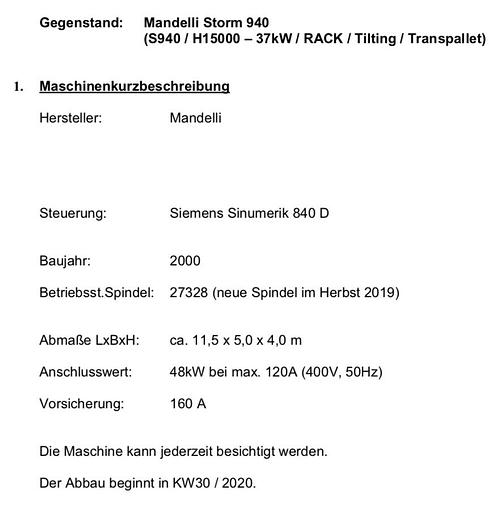

(S940 / H15000 - 37 kW / RACK / Tilting / Transpallet)

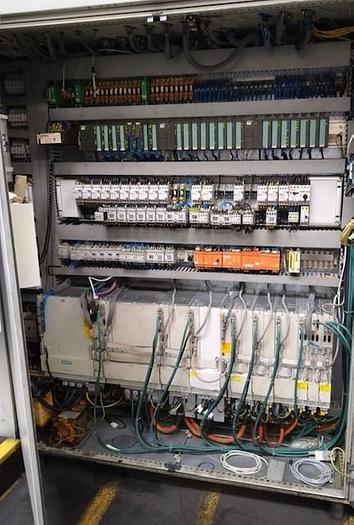

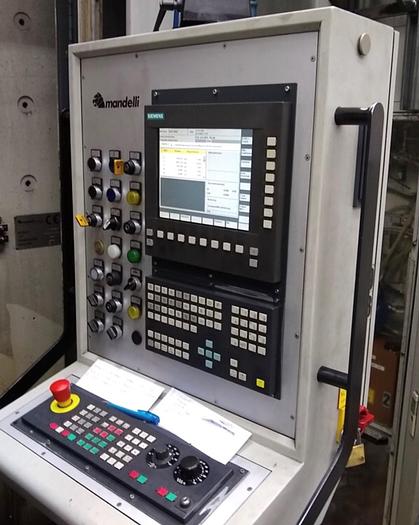

CONTROLS SIEMENS Sinumerik 840 D

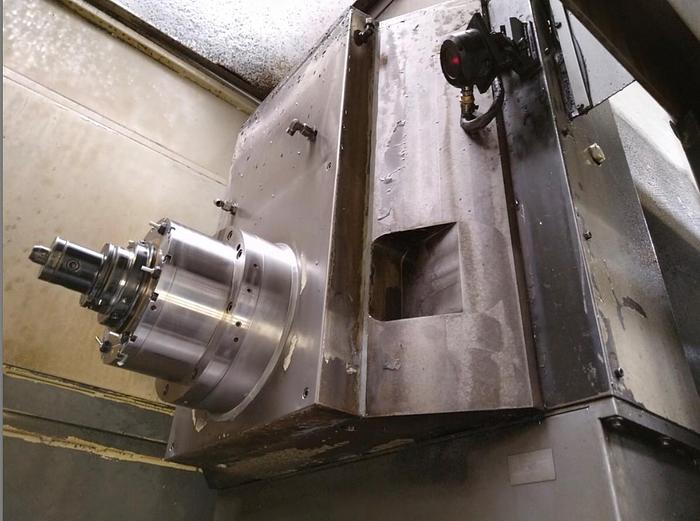

!! NEW GAMFIOR (SKF) SPINDLE IN AUTUMN 2019 !! >>> 27328 H

INNER SPINDLE COOLING

MACHINE CENTER COOLING WORKPLACE COOLING SYSTEM

CENTRAL LUBRICATION SYSTEM

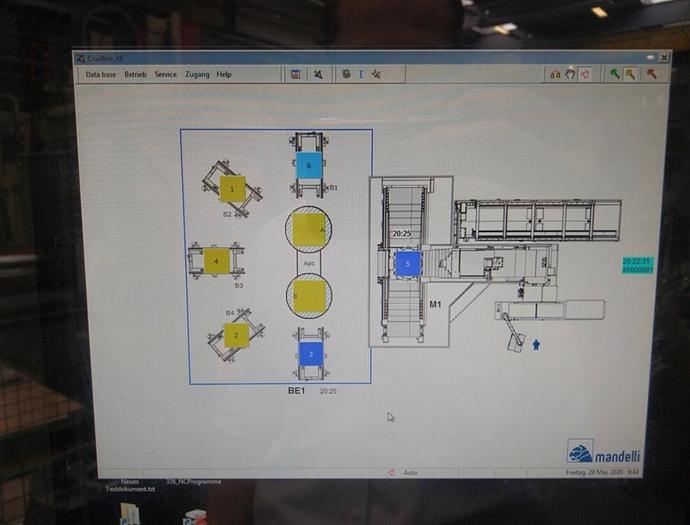

PALETTS 6 > 630 mm - 800 mm

PALETT SWITCH TIME 23 s

DIMENSIONS LxBxH 11,5 x 5 x 4 m

48 kW with max. 120 A (400 V, 50 Hz)

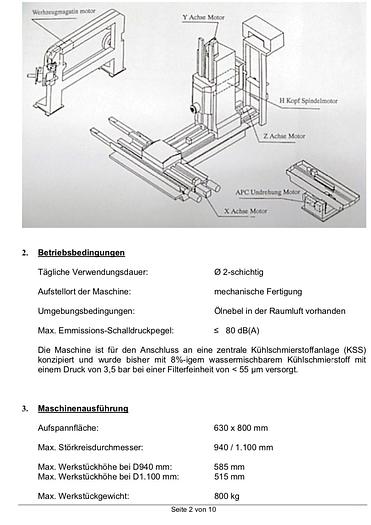

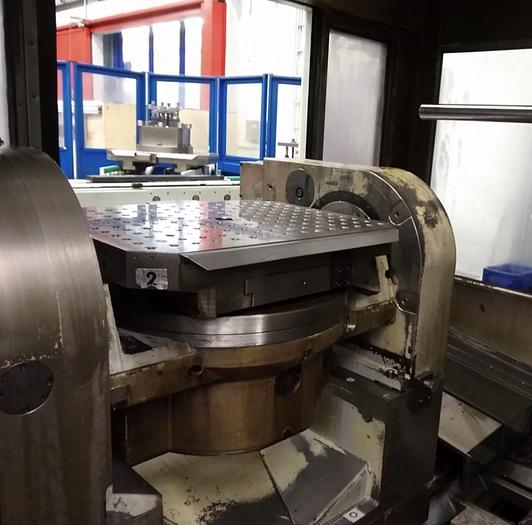

CLAMPING SURFACE 630 x 800 mm

INTERFERENCE DIAMETER with D940 940 / 1.100 mm

MAX WORKPIECE HEIGHT with D940 585 mm

MAX WORKPIECE HEIGHT with D1100 515 mm

WORKPIECE HEIGHT 800 kg

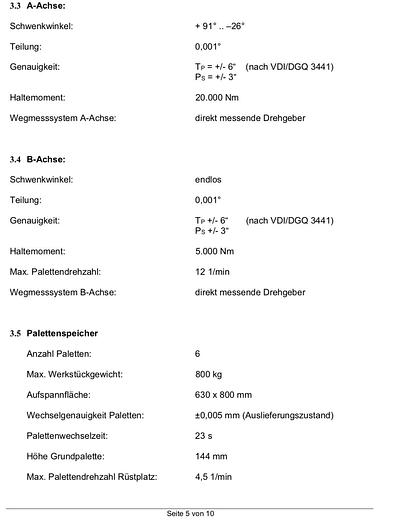

A-AXIS Swing Angle 91° .. - 26°

B-AXIS endless swing angle

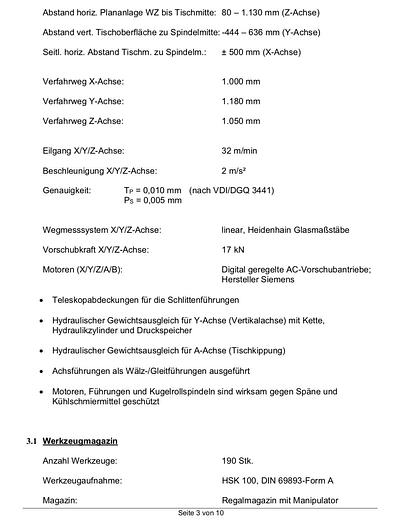

X-AXIS 1.000 mm

Y-AXIS 1.180 mm

Z-ACHSE 1.050 mm

RAPID FEED X / Y / Z Axis 32 m/min

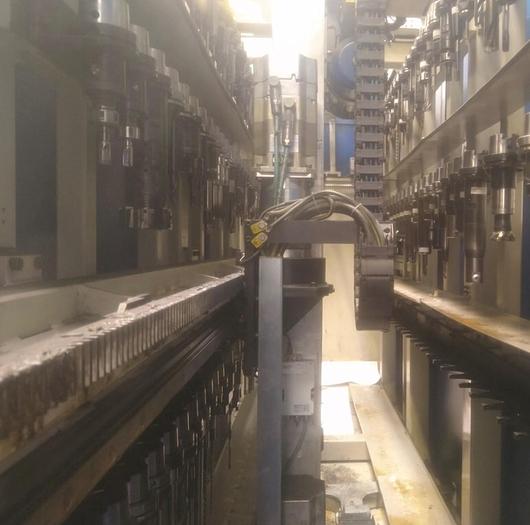

TOOLS MAGAZINE 120 pieces / HSK 100

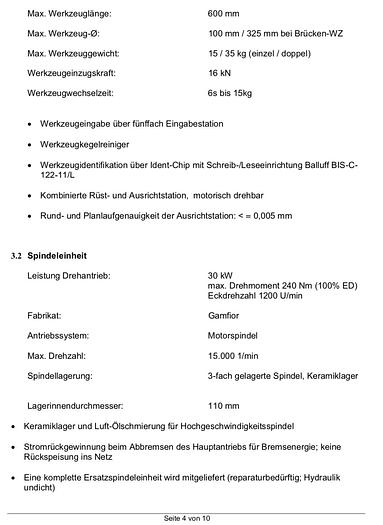

MAX. WORKPIECE LENGTH 600 mm

MAX. WORKPIECE-DIAMETER: 100 mm up to 325 mm

extra tools 5 x tools holder SK 100 inclusive
