5-Axis Milling Center AXA

Sold

5-Axis Milling Center AXA

Location:Sankt Leon-Rot, Germany

Description

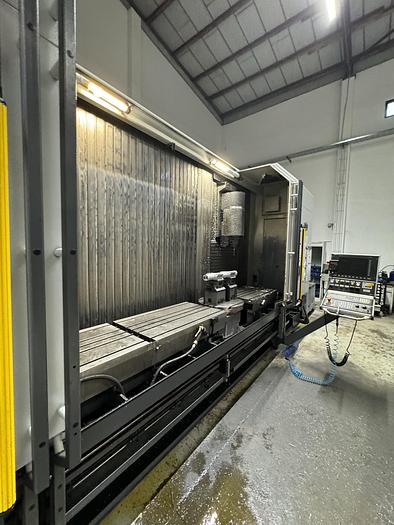

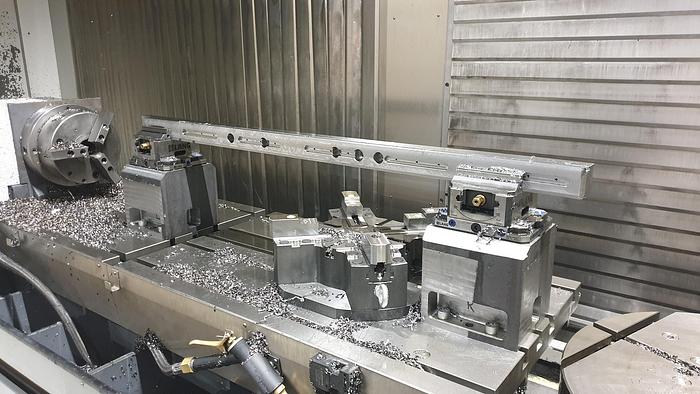

This 5-axis travelling column machining center with an integrated rotary table, offered by the German machine builder AXA, presents a unique opportunity.

From 2010 to 2015, the machine was exclusively used as a demonstration model for AXA. It was first installed in 2016, giving it an effective age of 8 years.

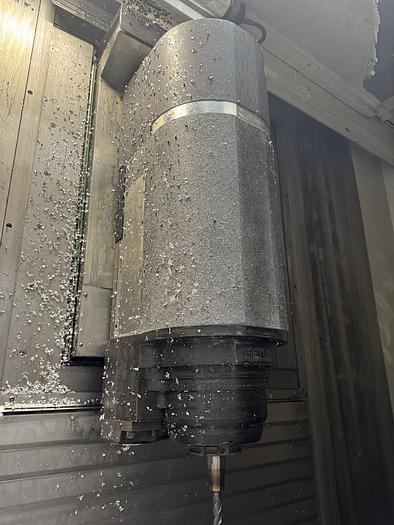

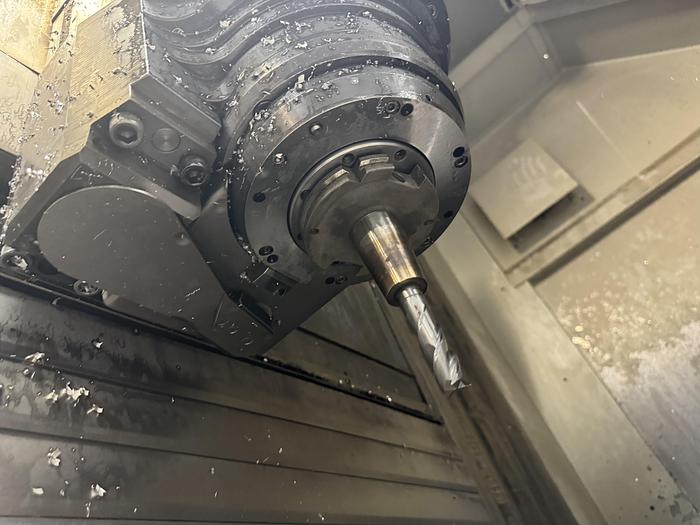

The previous owner had certain areas of the machine refurbished in 2023. In October 2023, the milling spindle was overhauled. New components were installed/replaced, including bearings, seals, lubrication lines, disc springs, motor windings, and the cooling housing. Upon the customer’s request, the complete tool arsenal can be included for a modest fee. The machine is available for demonstration at any time.

Availability: 09/2024

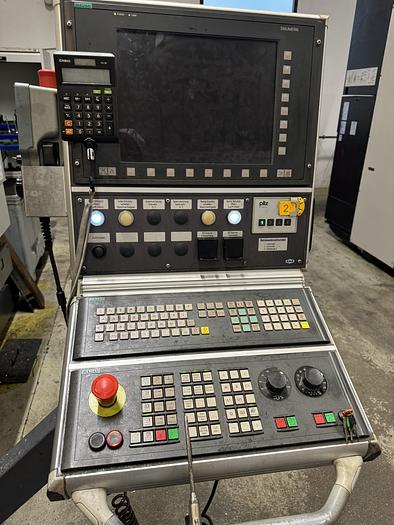

Control system: Siemens 840 D power line

Year of manufacture: 2010

Technical details:

  • Travel ranges:
  • X-axis: 3000 mm
  • Y-axis: 600 mm
  • Z-axis: 850 mm

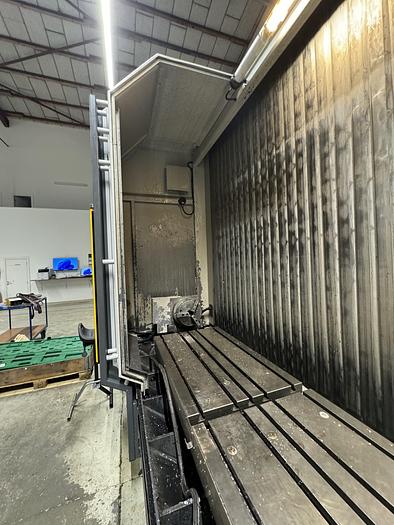

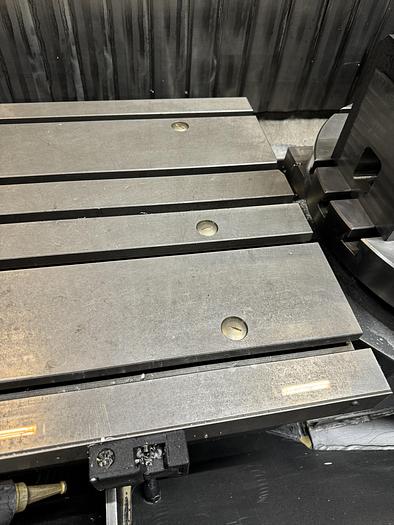

  • Table dimensions: 3750 x 600 mm

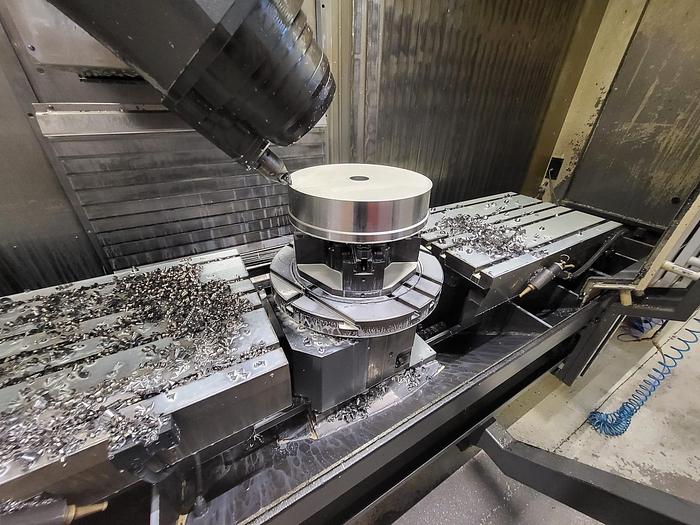

  • CNC rotary table: ø600 mm
  • Spindle mount: SK50 / Capto C6
  • Motor power: 56 kW
  • Stepless speed range: 30-9000 rpm
  • Rapid traverse speeds: X-40 / Y-40 / Z-30 m/min
  • Tool changer: 26 x SK50 / 10 x Capto C6

Equipment / Accessories:

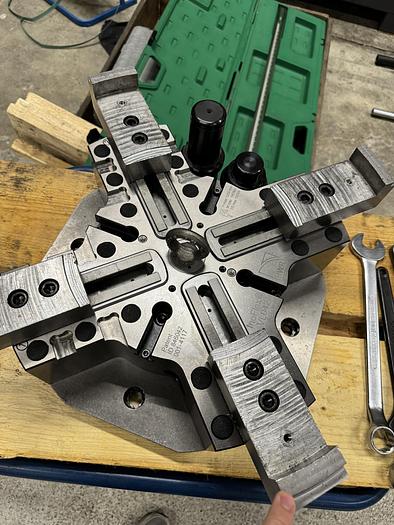

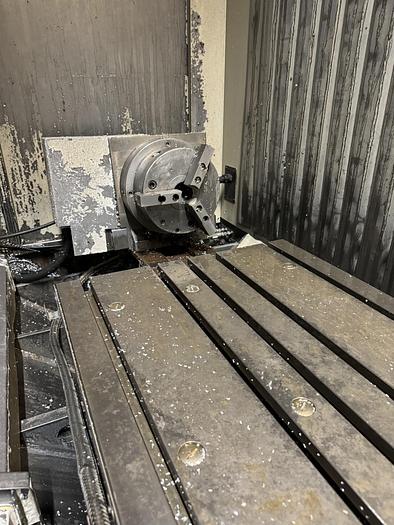

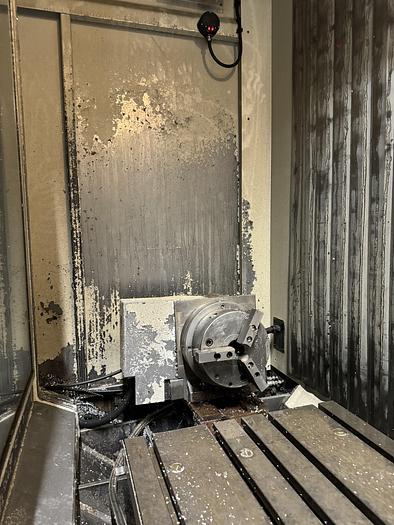

  • Forkardt chuck 200mm with chuck flange and centering pin mounted on A-axis

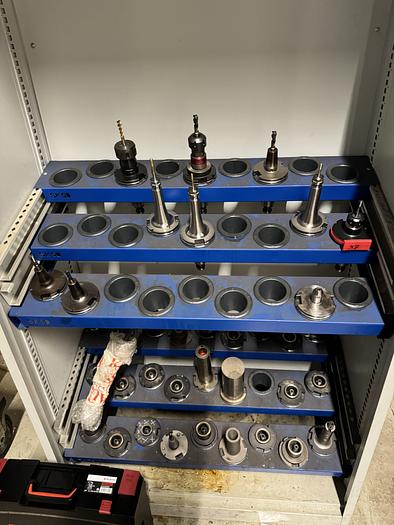

  • 221 tool holders SK50 (available on request)
  • Rotary table RTA 4D-600

Retrofit measures:

  • October 2023 + June 2024 (Complete spindle overhaul + C-axis repair)


Specifications

ManufacturerAXA
ModelVHC-2-3000-XTS-50-D
Year2010
ConditionUsed
Serial Number87143
